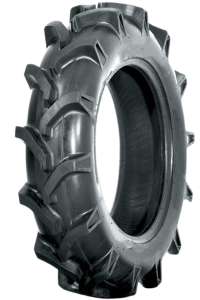

COMPACT TRACTOR TIRE - DEEP LUG
R-1HR
“Feel where traction goes hand in hand with comfort.”
- R-1HR is designed to compact tractors working in moist soil field operations.
- It has excellent grip and can effectively hold onto mud or uneven ground, ensuring stable driving and avoiding slipping when working in the field.
Tires are the essential point of contact between your car and the road. We work to ensure that your tires will always offer excellent braking, maximum safety, and pure driving pleasure.
STUBBLE RESISTANT
Uniglory R&D teams invest more than ten years time and resources designing tires for excellent stubble resistance.
With the innovative solutions for stubble resistance, Uniglory Stubble Guardian Technology are specialized used in the tread area of all the Uniglory agriculture tires.
- The unique carcass layer provides good toughness and rigidity, protect the tire crown effectively, solve the stubble problem under complex operation environment.
- The special rubber compounds enhances the fusion between the various raw materials, forms a sturdy protective layer.
- The reinforcement formula is perfect for resisting piercing forces from stubble.
- The optimized bead core design aims for the high torques of tractor tires and the rear axle tires of combine harvesters.
Results
The results are the outstanding service life of radial agriculture tire, increased by more than 25%.
| PATTERN NAME | DESCRIPTION | PR | Rim | Pairs of Lugs | Tread Depth (mm) | Overall Diameter (mm) | Section Width (mm) | Max Pressure (Kpa) | Max Load (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| R-1 HR | 8.3-20 | 6 | W7 | 13 | 32 | 860 | 200 | 240 | 695 |
| R-1 HR | 8.3-22 | 6 | W7 | 14 | 38 | 925 | 200 | 240 | 810 |
| R-1 HR | 8.3-24 | 6 | W7 | - | 37 | 970 | 200 | 240 | 810 |
| R-1 HR | 9.5-22 | 6 | W8 | 14 | 36 | 975 | 230 | 240 | 1000 |
| R-1 HR | 9.5-24 | 6 | W8 | - | 43 | 1020 | 230 | 240 | 1050 |
| R-1 HR | 11.2-24 | 6 | W10 | 15 | 46 | 1160 | 280 | 210 | 1080 |
| R-1 HR | 11.2-26 | 6 | W10 | 16 | 46 | 1090 | 280 | 210 | 1100 |
| R-1 HR | 11.2-28 | 6 | W10 | - | 46 | 1160 | 280 | 210 | 1360 |
| R-1 HR | 12.4-24 | 6 | W11 | - | 45 | 1140 | 290 | 200 | 1055 |
| R-1 HR | 12.4-26 | 6 | W11 | 15 | 46 | 1140 | 290 | 200 | 1100 |
| R-1 HR | 12.4-28 | 6 | W11 | - | 46 | 1220 | 290 | 230 | 1510 |
| R-1 HR | 12.4-32 | 6 | W11 | 17 | 46 | 1340 | 290 | 200 | 1355 |
| R-1 HR | 13.6-24 | 6 | W12 | 14 | 45 | 1140 | 325 | 180 | 1200 |
| R-1 HR | 13.6-26 | 6 | W12 | 15 | 45 | 1180 | 325 | 180 | 1600 |
| R-1 HR | 13.6-28 | 6 | W12 | 16 | 45 | 1235 | 325 | 180 | 1645 |
